    Steel Structure Wood Cutting And Creasing Machine High Speed

    Ask Lasest Price
    Brand Name : FINTEECH
    Certification : CE
    Payment Terms : L/C,T/T
    Supply Ability : 10 sets per day
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Steel Structure Wood Cutting And Creasing Machine High Speed

    Cutting and Creasing Machine

    This high-speed flatbed digital cutting machine is equipped with multiple tools including vibrating knife, creasing wheel, drag knife, V-cut knife, and pen. It handles various materials such as PP sheets, corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet, and other materials commonly used in advertising and display industries.

    Main Features
    • New steel frame design for enhanced stability
    • Two independent module design for broader applications
    • Exchangeable tools for better expansion
    • Honeycomb bed with vacuum area design for stronger suction
    • Maximum cutting thickness up to 60mm
    Machine Details

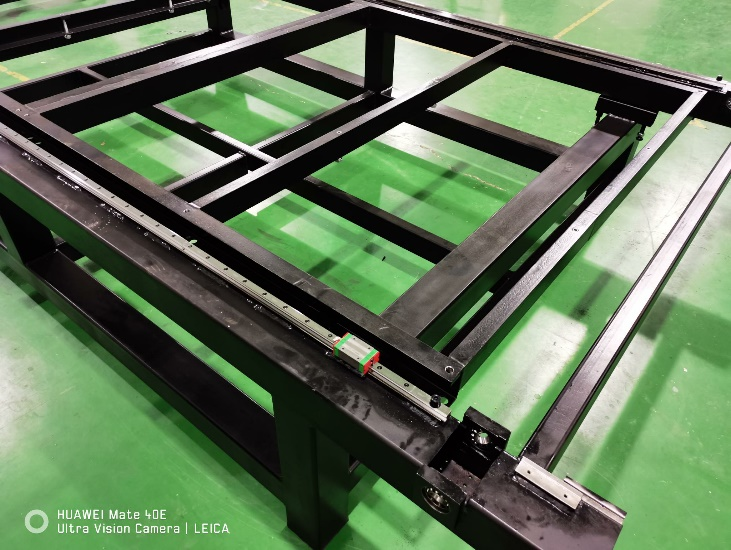

    Steel Structure
    Steel structure of cutting and creasing machine
    Honeycomb Aluminum Bed
    Honeycomb aluminum bed of cutting machine
    Whole design, won't bend
    Motor and Driver
    Mitsubishi servo motor and driver
    Mitsubishi brand servo motor and driver
    Transfer Port
    Machine transfer ports including Ethernet and USB
    Ethernet port, USB port, Udisk
    Tool Head
    Tool head of cutting machine
    Available Tools
    Standard ToolOptional Tool
    Oscillation knife
    Oscillation knife tool
    Creasing Wheel
    Creasing wheel tool
    Plotting Pen
    Plotting pen tool
    Laser light
    Laser light tool
    Drag knife
    Drag knife tool
    Camera
    Camera tool
    Control System
    Machine control system
    Touch Screen Interface
    Machine touch screen interface
    Technical Specifications
    Supported Languages: English, Spanish, French, German, Polish, Portuguese, Russian, Korean, Vietnamese, Indonesian, Italian, Turkish, Arabic, Finnish, etc.
    File Formats: DXF, PLT, AI, PDF, etc.
    Vacuum Pump: 7.5KW with 8 zones
    Maximum Cutting Speed: 1500mm/s
    Maximum Cutting Thickness: 60mm
    Compatible Materials: Foam, EVA, PVC, PP Sheets, polypropylene corrugated sheet, corrugated cardboard up to 60mm, cartons, laminates, printing blankets, coating plates, preprinted vinyl films, reflective sheeting, textile and technical fabrics, etc.
