1. Machine Install 7sets servo motor, high stability with more easy adjustment
2. Modular structure with free switching between hob cutting knife and horizontal knife.(Horizontal knife is optional function)
3. Through the PLC, input the paper size, automatically adjust the film length position.
4. Paper receiving stepper with batch counting
5. Air expansion shaft with magnetic powder tension film unwinding
6. Paper vacuum adsorption conveying
7. Double/empty paper convey problem, glue part can glue automatic rise.
8. High exactly to positioning the printed film for window patching.
9. The film can be embossed (need to customize pattern mold)
10. The film can be punched with round holes or special-shaped holes (Need to customize the mold)
11. To do the window pasting with creasing with V cutting.
12. Suitable for making tissue box(Standard)

1.It can position the window film of printing automatically. To get the high exactly position of printed film.
2. The film can be embossed(need to customize pattern mold, the model need to added the cost if choose this function)
3.The film can be punched with round holes or special-shaped holes(Need to customize the mold, the mould need to added the cost if choose this function)

Model	G-1200S
Max.Paper Size	W1150xL720mm
Min.Paper Size	110X110mm
Paper Weight	Kraft Paper:150-1200g/㎡ White Cardboard:230-1200g/㎡ Corrugated Paper:≤3mm
Max.Film Size	W550xL430mm
Min.Film Size	W30xL65mm
Max.Film Unwinding Diameter	450mm
Film Thickness	Horizontal knife；CPE/PE:0.06-0.2mmPVC:0.08-0.2mm APET/PET:0.06-0.2mm Roll Type Cutting knife；CPE/PE:0.1-0.3mmPVC:0.1-0.3mm APET/PET:0.08-0.3mm
Film Precision	±1mm
Maximum Speed	Paper L≤330mm:30000pcs/h Paper L＞330mm:1000--15000pcs/h
Quantity of Servo Motor	7Sets
Quantity of Stepping Motor	1Sets Driving Parts: Automatic paper receiving 1 set
Power	380/415V 50/60Hz 18KW
Overall Dimension	L570xW190xH160cm
Wooden case packing (export)	Size:L360xW155xH165cm G.W.:3680kg N.W.:3400kg
Machine weight	3400kg

More details introduction:

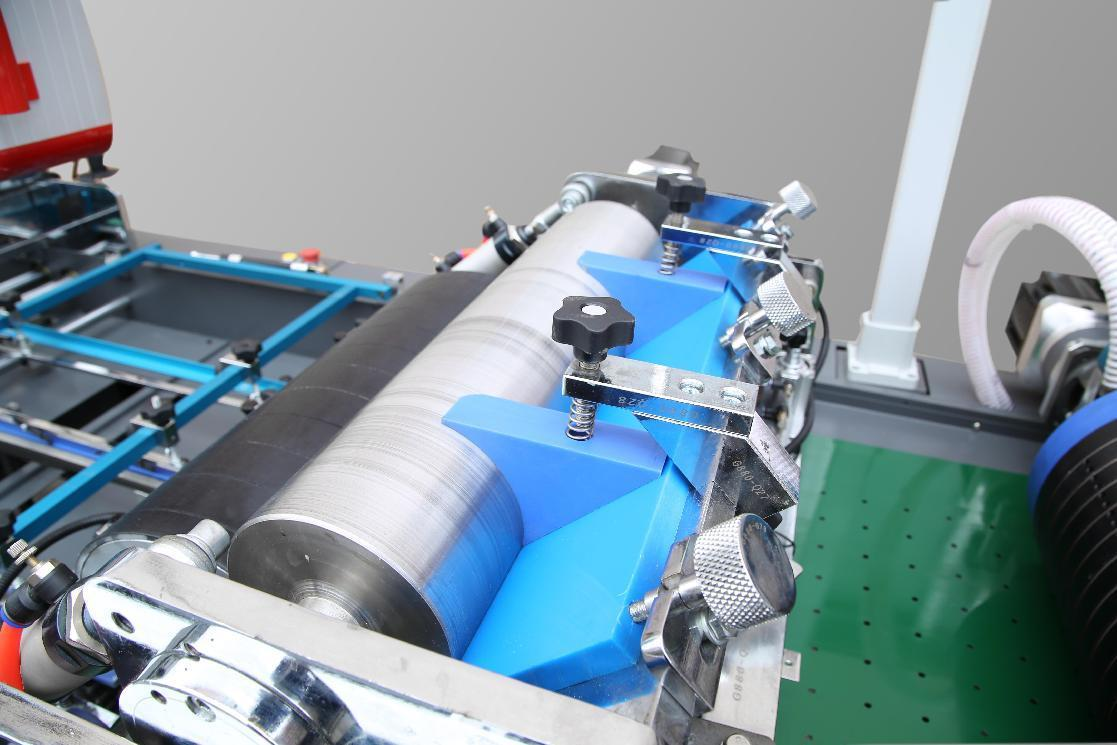

Paper Feeding	Correction of Paper Feeding Track	Gluing
Machine Screen for machine back running	Servo motor	Nylon gluing plate
Independently Final product Collecting holder	Movable Touch Controlling Screen	Adjustment for film unwinding tension

Cake box / General Box

Double creasing / Three creasing (Optional)

Horizontal creasing / Horizontal and Vertical creasing(Optional) / Tissue box
